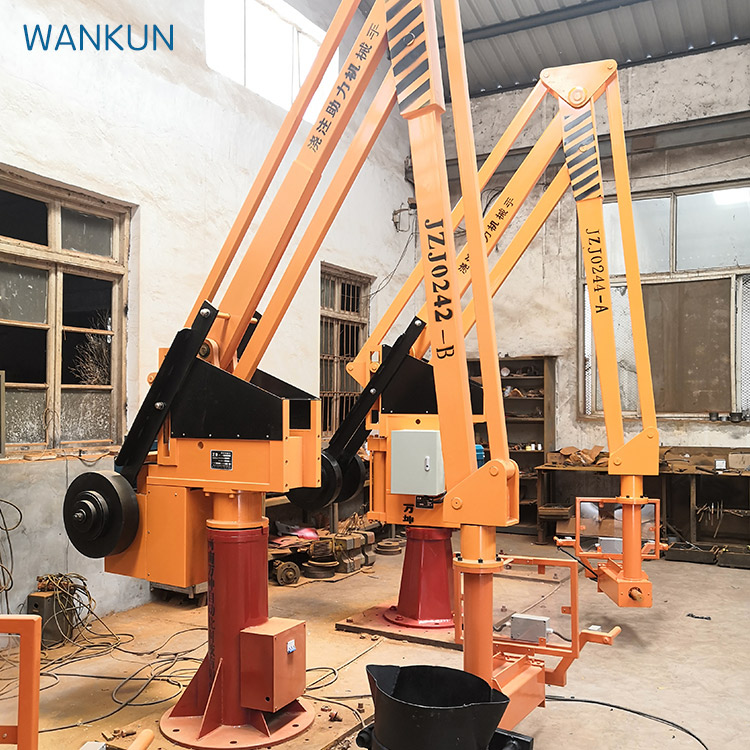

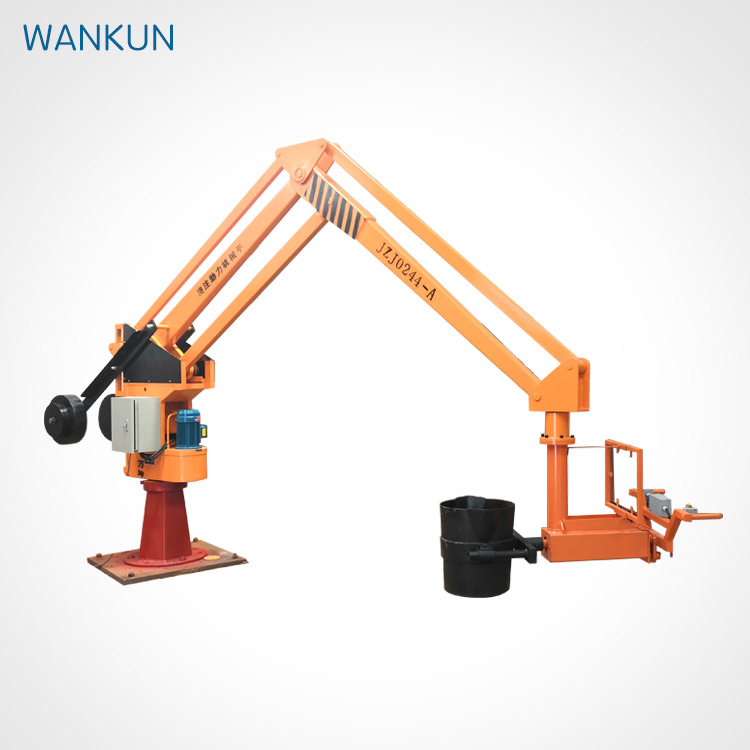

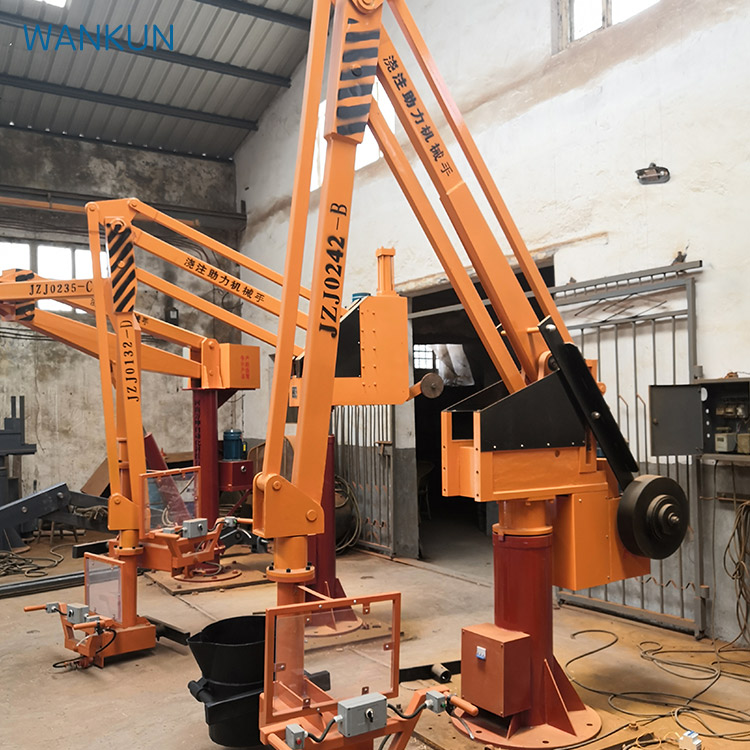

ZJZ Series Hydraulic Casting Manipulator yog hom tshiab ntawm cov khoom siv thiab nqa cov khoom, nrog cov yam ntxwv hauv qab no:
1, tsis muaj kev taug kev mus, siv lub tog raj kheej tus kheej cov khoom txwv kev taug kev, thiab cov khoom siv ntas tsis sib haum.
2. Lub system hydraulic yog nruab nrog kev nyab xeeb khoom siv, uas muaj kev tiv thaiv kev nyab xeeb nyob rau hauv cov ntaub ntawv ntawm overload thiab li ntawd, thiab zam qhov kev puas tsuaj ntawm cov khoom crane.
Hydraulic Casting Manipulator nqa cov khoom hnyav tau tiav los ntawm peb lub suab seev hauv qab no:
2. Tig ib ncig ntawm fuselage manually
3. Txav rov qab ua ntej manually
Ain Technical tsis ntawm Zjz Hydraulic Pouring Memipulator
0135 | 0235 | 0335 | 0140 | 0240 | 0340 | |||
Rated Lifting luj(kg) | 100 | 100 | 200 | 300 | ||||
4000 | ||||||||
(lub hli) | 1100 | |||||||
Lub kaum sab xis ntawm kev sib hloov (degrees)
| 345 | |||||||
Tus qauv | Y90s-4 | |||||||
1400 | ||||||||
Rated fais fab(kw) | 1.5 | |||||||
Roj Viscosity (hli2s) | Kev nyiam huv ntawm cov roj thiab cov kab ke yuav tsis qis dua li GBT 14039-93 Qib 19/16 lossis NAS 1638 Qeb 10 | |||||||
M24x600x6 (Kev faib tawm cov khoom siv tsis zoo) | ||||||||
Txoj kab uas hla ntawm lub voj voog ntawm lub nkoj lub nkoj hlau D (hli) | 600 | |||||||
Pom zoo kom Maas lub hauv paus loj loj (ntev x dav x qhov tob) | 1000x1000x450 | 1000x1000x500 | 1250 X 550X 600 | |||||
Sab Nraud Teeb Duab
Tus qauv thiab cov ntsiab cai
JZJ Series Casting Hydraulic yog tsim ntawm tsib ntu: Fuselage, ntsuas plaub-Rod mechanism, kev tswj hwm hluav taws xob thiab kev tswj lub hnab hluav taws xob.
1. Fuselage:
Ntu no muaj lub hauv paus,
Kev sib hloov cov cuab yeej, caj npab lub rooj zaum, cov rooj sib dhos kev sib dhos (tsau) (saib cov lus ntev) lossis tsau rau ntawm lub laub me (txawb).
Qhov no yog tsim ntawm caj npab loj, loj caj npab ua hmoov av, nqa caj npab, nqa tus pas nrig, txhawb nqa phaj thiab seem thaiv thiab lwm qhov chaw.
3. Lub kaw lus hydraulic:
Lub kaw lus muaj cov iav twj tso kua mis, hluav taws xob lub ntsuas hluav taws xob valve, inlet thiab xa rov qab roj pipeline, valve kev ruaj ntseg, hydraulic kheej kheej thiab lwm yam.
4. Hluav taws xob tswj Tshooj:
Qhov no yog tsim muaj lub cev muaj zog, cov ntaub ntawv yas Cegruit Court, Fuse, Tswj khawm, Feletor, me me Relay, thiab lwm yam (saib Cov Lus 2).
Siv 24V fais fab mov.
5. Tus Specker Ntu:
Ntim, kev thauj mus los, teeb tsa thiab commissioning
1. Ntim, Tsheb Thauj Mus Los thiab Kev Sib Ntsib
Thaum shipping, tag nrho cov tshuab yog tsau rau ntawm thauj khoom tshwj xeeb hauv qab yog tsau rau ntawm fuselage nrog lub taub ruaj, kom nws tsis tuaj yeem swb rov qab thiab.
Thov nyeem cov lus qhia kom zoo ua ntej txhim kho lub tshuab.
Them sai sai rau kev nyab xeeb
2, lub khauj khaum ntawm lub tshuab yuav tsum tau cog qoob loo (PE kab), thiab hauv av yog qhov zoo.
3. Ua ntej qhib lub thawv hluav taws xob npog rau kev saib xyuas, lub zog hluav taws xob sab nraud yuav tsum tau txiav tawm ua ntej.
4. Thaum kev ua haujlwm nyob rau hauv cov huab cua qhib, nag los nag thiab hmoov av yuav tsum tau ua.
5, Tej thaj chaw taws teeb taws yuav tsum yog ob lub hlis (nyob ntawm kev siv) los hloov lub roj teeb.
lubrication
1. Cov kabmob dov ntawm txhua feem ntawm lub tshuab lubricated los ntawm cov roj calhium calse, ntxuav thiab hloov ib zaug rau lub hlis.
3, cov roj tank nrog 32 # ~ 48 # tiv thaiv cov roj roj roj hauv qab no, cov roj tsheb hauv qab no, tu txhua rau lub hlis, hloov ib zaug.
Daim duab.
Lub npe | Cov lus qhia | Qlaj mej | |||
M | Lub cav | Qhia nyob rau hauv rooj 1 | 1 | ||
QF | Cua Hloov | DZ47-60-D16 | 1 | ||
3 | U | Rrectifier | 1 | ||
4 | SB1SB2,Sb3,SB4 | Rkev xaivControl | Xj-e2 txi | 1 | |
5 | Km1KM2 | CJX1-9 | 2 | AC24v | |
6 | Yv1, | Sib Nqus Txauv Valve | Dsg-02 3C60-D24 | 2 | AC24v |
7 | Tc | ControlTlub pauv hloov
| BK-50 380V / 24V |
Daim Duab 5
Schematic ntawm hydraulic system
